Blue High Speed Alternator High Voltage Generator 30kw 37.5kva 60hz

نام تجاری:	Werna
شماره مدل:	WR184G
مقدار تولیدی:	5pcs
قیمت:	negotiable
جزئیات بسته بندی:	Plywood
شرایط پرداخت:	T/T

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

Place of Origin:

Wuxi,China

گواهی:

CE,ISO9001,SASO

Insulation Class:

Class H

Rated Voltage:

190-454v

Protection:

IP 22

Packing:

Plywood

Wire:

100 % copper wire

< 2 %

Supply Ability:

1000units/month

برجسته کردن:

3 phase portable generator,three phase alternator

three phase alternator

توضیحات محصول

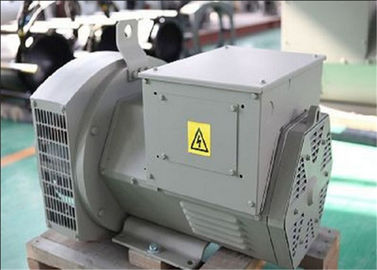

Blue High Speed Three Phase AC Generator / Alternator 30kw / 37.5kva 60hz

Quick detail:

Name	ALTERNATOR	Brand Name	WERNA
Color	According to the international standard color card	Feature	AC brushless synchronous excitation alternator
Power	30KW	Certificate	CE,ISO9001,SASO

Specication:

manufacture	Wuxi City ,Jiangsu Prov ,China making alternators
Output type	AC Three Phase Brushless generator
Terminal	12 / 6 Wire
Rated Voltage	208V~480V
Frequency	60Hz
Speed	1800RPM
Mounting Dimension	Stamford Type
Winding pitch	2/3 pitch
Excitation	Brushless, self-excited, synchro
Insulation Class	H

Technical Datas

Werna Type	3Phase 60Hz 1800rpm		Shaft length	Copper total weight	Core length
	208V~480V
	KVA	KW	mm	kgs	mm
WR164A	10.2	8.2	373.16	9.98	65
WR164B	13.8	11	373.16	11.18	80
WR164C	16.9	13.5	400.16	11.6	100
WR164D	20.2	16	400.16	11.88	115
WR184E	28.8	23	440.16	14.72	150
WR184F	34.4	27.5	530.16	16.2	190
WR184G	37.5	30	530.16	17.8	230
WR184H	46.9	37.5	673.3	19.21	255
WR184J	50	40	673.3	20.48	285

Description:
with long experience in manufacturing alternator / ac generator.
Alternator Power Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, brushless, Self-excited. Abounds with almost every model in stock.

Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23
IP23 is for optional but the rated power will decrease 5%.

Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

Winding
All generator stators are wound to 2/3 pitch.

Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
Blue High Speed Alternator High Voltage Generator 30kw 37.5kva 60hz 0
