Copper Wire Standard Three Phase AC Generator 8.2kw 1500rpm IP23

Copper Wire Standard Three Phase AC Generator 8.2kw 1500rpm IP23

  • Copper Wire Standard Three Phase AC Generator 8.2kw 1500rpm IP23
Copper Wire Standard Three Phase AC Generator 8.2kw 1500rpm IP23
جزئیات محصول:
Place of Origin: Wuxi,China
نام تجاری: Werna
گواهی: CE,ISO9001,SASO
Model Number: WR164A
پرداخت:
Minimum Order Quantity: 5pcs
قیمت: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
مخاطب
توضیحات محصول جزئیات
Packaging details: Packed in standard seaworthy packing (wooden cases / plywood etc) Material: Cold roll stator & 100 % copper
OEM Service: acceptable Rated Current: as per voltage: as per voltage
Color: optional THF: <2%
برجسته:

3 phase portable generator,three phase alternator

,

three phase alternator

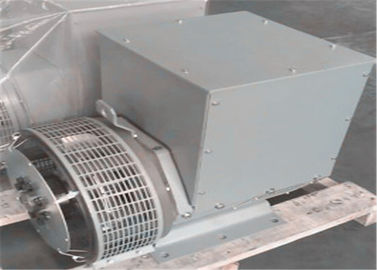

100% Copper Wire Standard Three Phase AC Generator 8.2kw 1500rpm IP23
Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

8.2KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

208V~480V

Frequency

60Hz

Speed

1800RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H


Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23
 IP23 is for optional but the rated power will decrease 5%.

 Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

 Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.

Why to choose Werna Alternator/generator?

1, Advanced AVR :SX460 &SX440
2, H class insulation ensure the generator running in dreadful conditions
3, The 2/3 pitch design avoids excessive neutral currents
4, You can reconnect 12 ends of the terminals to meet other voltage
5, Single bearing and double bearing ,single phase and three phases
6, Standard IP23
