Brushless AC Generator

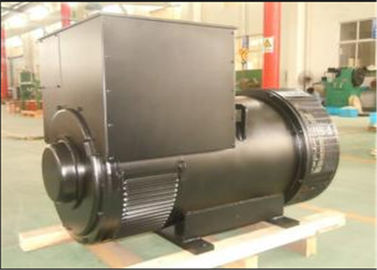

IP22 Brushless Synchronous Generator Self - Excited ISO9001

تمام دسته ها

Brushless Synchronous Generator

Three Phase Brushless Alternator

Three Phase Synchronous Generator

Brushless Exciter Synchronous Generator

Small Brushless Alternator

با ما تماس بگیرید

Mr. Terry

terry@werna.cn

+86 13921153926

حالا تماس بگیرید

IP22 Brushless Synchronous Generator Self - Excited ISO9001

نام تجاری:	Werna
شماره مدل:	WR224C
مقدار تولیدی:	5pcs
قیمت:	negotiable
جزئیات بسته بندی:	Plywood
شرایط پرداخت:	T/T

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

Place of Origin:

Wuxi,China

گواهی:

CE,ISO9001,SASO

حفاظت:

کلاس عایق:

ولتاژ محاسبه شده:

190-454 ولت

نوع خروجی:

دیزل ژنراتور سه فاز و سه فاز AC

سازنده:

Wuxi City، Jiangsu Prov، چین ساخت دینام

Supply Ability:

1000units/month

برجسته کردن:

دینام برق بدون جاروبک

ژنراتور سنکرون بدون جاروبک

ژنراتور بدون جاروبک تک فاز IP22

توضیحات محصول

Single Phase 30kva from 110v / 240v Brushless AC Alternator For Generator Set

Quick Detail:

Place of origin:Jiangsu,china Brand name:Werna

Output Type: Ac single phase Certificates:CE,ISO9001
Specifications:

Model	WR224C
manufacturer	Wuxi City ,Jiangsu Prov ,China making alternators
Output Type	AC Single Phase diesel generator
Terminal	12 / 6 Wire
Rated Voltage	110-240V
Frequency	50HZ
Speed	1500RPM
Mounting dimensions	Stamford Type
Winding Pitch	2 / 3 pitch
Excitation	Brushless, self-excited, synchronous
Insulation Class	H

Description:

We are professional manufacture of stamford copy of alternator.

Insulation

Insulation Class H

All regulatory components are made up with special materials and are immersed in lacquer by peculiar tech. Vanish and colophony materials are develop to strengthen the processing and machinery intensity of windings and revolving parts for protecting the alternator work under corrosive environment.

Winding and electric features:

2/3 pith winding design can effectively eliminate the third harmonic wave(3th.9^th,15^th) of the voltage ,which is the best design of UPS for nonlinear load .Connected with the network in parallel, the structure can restrain excessive currents in the midline

A continuous damp windings abates surges. The poles and gears of the windings are carefully chosen, this and the 2/3 pitch help to check the wave distortion and output voltage.

Phone interference

THF(defined by 40thpart of BS4999) <2%.TIF(defined by ASAC50.12)<50

Radio interference

Brushless apparatus and quality AVR ensure little radio interference in transmission. RFI noise filter is also available.

ompetitive Advantage:

1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service

IP22 Brushless Synchronous Generator Self - Excited ISO9001 0
