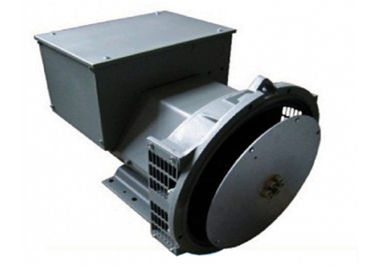

12 / 6 Wire CE Brushless AC Synchronous Generator 15.6kva 12.5kw 60HZ

12 / 6 Wire CE Brushless AC Synchronous Generator 15.6kva 12.5kw 60HZ

  • 12 / 6 Wire CE Brushless AC Synchronous Generator 15.6kva 12.5kw 60HZ
12 / 6 Wire CE Brushless AC Synchronous Generator 15.6kva 12.5kw 60HZ
جزئیات محصول:
Place of Origin: Wuxi,China
نام تجاری: Werna
گواهی: CE,ISO9001,SASO
Model Number: WR162D
پرداخت:
Minimum Order Quantity: 5pcs
قیمت: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
مخاطب
توضیحات محصول جزئیات
OEM Service: acceptable Material: Cold roll stator & 100 % copper
Insulation class: H Protection: IP22
Warranty: 2 years Life time: 20 years
برجسته:

self-excited ac generator,brushless ac alternator

,

brushless ac alternator

12 / 6 Wire CE Brushless AC Synchronous Generator 15.6kva 12.5kw 60HZ







Quick Detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

          12.5kw

Certificate

CE,ISO9001,SASO


Specifications:

Model

WR162D

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Three Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

208-480V

Frequency

60HZ

Speed

3600RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H



Technical data

Werna Type 3Phase 50Hz3000rpm Shaft Length Copper total weight Core length
         380V~415V
KVA KW mm kgs mm
WR162D 12.5 10 373.16 12.22 66
WR162E 15 12 373.16 13.02 88
WR162F 17.5 14 425.16 13.44 102
WR162G 25 20 425.16 15.2 140
WR182H 30 24 490.16 15.88 160
WR182J 35 28 490.16 17.19 190
WR182K 37.5 30 530.16 18.48 225

Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
Competitive Advantage:
1) Any permanent magnetic generators, providing invariable excitation on all occasions.
2) Easy to be connected with power network or other generators. Standard 2/3 pitch windings check

excessive midline  current.
3) Balanced rotor with single or two sealed ball bearings
4) Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling

bolts
5) Wide range of Flange adaptor and single bearing coupling discMeet leading standards



Quality Control Surveillance

12 / 6 Wire CE Brushless AC Synchronous Generator 15.6kva 12.5kw 60HZ 0
