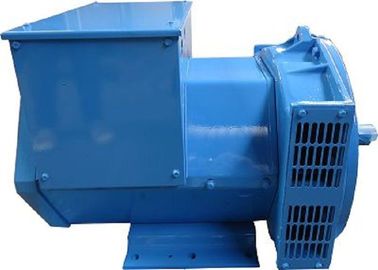

High Speed Brushless AC Generator with 60hz frequency 18.5kva / 18.5kw

نام تجاری:	Werna
شماره مدل:	WR184E
مقدار تولیدی:	5pcs
قیمت:	negotiable
جزئیات بسته بندی:	Plywood
شرایط پرداخت:	T/T

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

Place of Origin:

Wuxi,China

گواهی:

CE,ISO9001,SASO

Supply Ability:

1000units/month

برجسته کردن:

self-excited ac generator,brushless ac alternator

brushless ac alternator

توضیحات محصول

High Speed Brushless AC Generator with 60hz frequency 18.5kva / 18.5kw

Quick Detail:

Name :Alternator Brand Name:WERNA

Color:According to the international standard color card

Feature:AC brushless synchronous excitation alternator

Certificate :CE,ISO9001,SASO

Specifications:

Model	WR184E
manufacturer	Wuxi City ,Jiangsu Prov ,China making alternators
Output Type	AC Single Phase diesel generator
Terminal	12 / 6 Wire
Rated Voltage	110-240V
Frequency	60HZ
Speed	1800RPM
Mounting dimensions	Stamford Type
Winding Pitch	2 / 3 pitch
Excitation	Brushless, self-excited, synchronous
Insulation Class	H

Description:

Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.

Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
Production line
