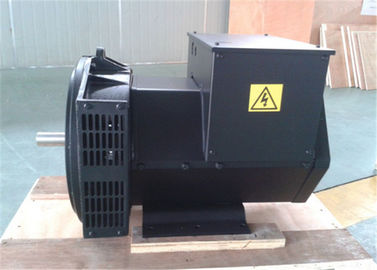

70kw 70kwa Brushless AC Generator 60hz Frequency For All Generator Set

70kw 70kwa Brushless AC Generator 60hz Frequency For All Generator Set

    • 70kw 70kwa Brushless AC Generator 60hz Frequency For All Generator Set
  • 70kw 70kwa Brushless AC Generator 60hz Frequency For All Generator Set

    جزئیات محصول:

    Place of Origin: Wuxi,China
    نام تجاری: Werna
    گواهی: CE,ISO9001,SASO
    Model Number: WR224G

    پرداخت:

    Minimum Order Quantity: 5pcs
    قیمت: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    مخاطب
    توضیحات محصول جزئیات
    manufacturer: Wuxi City ,Jiangsu Prov ,China making alternators Speed: 1500Rpm or 1800Rpm;3000Rpm or 3600Rpm
    Mounting dimensions: Stamford Type Winding Pitch: 2 / 3 pitch
    Excitation: Brushless, self-excited, synchro Insulation Class: H
    برجسته:

    brushless ac alternator

    ,

    brushless synchronous generator


    70kw / 70kwa Brushless AC Generator 60hz Frequency For All Generator Set





    Quick Detail:

    Name :Alternator            Brand Name:WERNA
    Color:According to the international standard color card
    Feature:AC brushless synchronous excitation alternator
    Certificate :CE,ISO9001,SASO


    Specifications:

    Model

    WR224G

    manufacturer

     Wuxi City ,Jiangsu Prov ,China making alternators

    Output Type

    AC Single Phase diesel generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110-240V

    Frequency

    60HZ

    Speed

    1800RPM

    Mounting dimensions

    Stamford Type

    Winding Pitch

    2 / 3 pitch

    Excitation

    Brushless, self-excited, synchronous

    Insulation Class

    H


    Description:
    Insulation Class H
    All regulatory components are made up with special materials and are immersed in lacquer by peculiar tech.
    Vanish and colophony materials are develop to strengthen the processing and machinery intensity of
    windings and revolving parts for protecting the alternator work under corrosive environment.
    Winding and electric features:
    2/3 pith winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage ,
    which is the best design of UPS for nonlinear load .Connected with the network in parallel, the structure
    can restrain excessive currents in the midline
    A continuous damp windings abates surges. The poles and gears of the windings are carefully chosen,
    this and the 2/3 pitch help to check the wave distortion and output voltage.
    Phone interference
    THF(defined by 40thpart of BS4999) <2%.TIF(defined by ASAC50.12)<50
    Radio interference
    Brushless apparatus and quality AVR ensure little radio interference in transmission.
    RFI noise filter is also available.

    Competitive Advantage:
    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    7. CE,ISO9001
    8. Good after-sale service
    Production line
    70kw 70kwa Brushless AC Generator 60hz Frequency For All Generator Set 0
