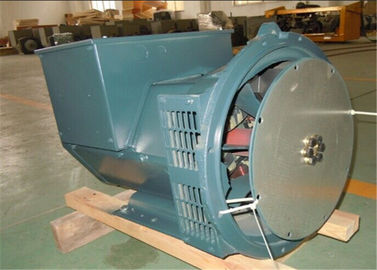

20kw 50hz 20kva Brushless Synchronous Generator 110 - 240v CE

20kw 50hz 20kva Brushless Synchronous Generator 110 - 240v CE

    • 20kw 50hz 20kva Brushless Synchronous Generator 110 - 240v CE
  • 20kw 50hz 20kva Brushless Synchronous Generator 110 - 240v CE

    جزئیات محصول:

    Place of Origin: Wuxi,China
    نام تجاری: Werna
    گواهی: CE,ISO9001,SASO
    Model Number: WR182H

    پرداخت:

    Minimum Order Quantity: 5pcs
    قیمت: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    مخاطب
    توضیحات محصول جزئیات
    MOQ: 1 Color: Optional
    Rated Voltage: 110-240v Terminal: 12 / 6 Wire
    Output Type: AC Three Phase & 3 Phase diesel generators Manufacturer: Wuxi City ,Jiangsu Prov ,China making alternators
    برجسته:

    self-excited ac generator

    ,

    brushless ac alternator


    20kw 50hz / 20kva Brushless AC Generator And Synchronous Alternator CE
    Quick Detail:

    Name

            Alternator

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator



    Power

              20kw

    Certificate

    CE,ISO9001,SASO


    Specifications:

    Model

    WR182H

    manufacturer

     Wuxi City ,Jiangsu Prov ,China making alternators

    Output Type

    AC Single Phase diesel generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110-240V

    Frequency

    50HZ

    Speed

    3000RPM

    Mounting dimensions

    Stamford Type

    Winding Pitch

    2 / 3 pitch

    Excitation

    Brushless, self-excited, synchronous

    Insulation Class

    H


    Description:
    Frequency And Voltage
    50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
    Insulation and Protection
    Insulation: H, Protection: IP23
    Voltage Regulators
    The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
    Winding
    All generator stators are wound to 2/3 pitch.
    The quality management system of our factory
    A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
    Competitive Advantage:
    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    20kw 50hz 20kva Brushless Synchronous Generator 110 - 240v CE 0
