11.8kw Working Of AC Generator With Class H For Cummins Generator Set 3000RPM

11.8kw Working Of AC Generator With Class H For Cummins Generator Set 3000RPM

    • 11.8kw Working Of AC Generator With Class H For Cummins Generator Set 3000RPM
  • 11.8kw Working Of AC Generator With Class H For Cummins Generator Set 3000RPM

    جزئیات محصول:

    Place of Origin: Wuxi,China
    نام تجاری: Werna
    گواهی: CE,ISO9001,SASO
    Model Number: WR162F

    پرداخت:

    Minimum Order Quantity: 5pcs
    قیمت: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    مخاطب
    توضیحات محصول جزئیات
    Wire: 100% copper wire Warranty: 2 years
    Life time: 20 years Color: Optional
    Protection: IP22/23 Insulation class: H
    برجسته:

    self-excited ac generator

    ,

    brushless ac alternator

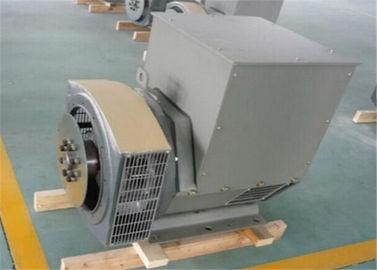

    11.8kw Brushless AC Generator With Class H For Cummins Generator Set / 3000 RPM

    Quick Detail:

    Name

    Alternator

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator


    Power

              11.8kw

    Certificate

    CE,ISO9001,SASO


    Specifications:

    Model

    WR162F

    manufacturer

     Wuxi City ,Jiangsu Prov ,China making alternators

    Output Type

    AC Single Phase diesel generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110-240V

    Frequency

    50HZ

    Speed

    3000RPM

    Mounting dimensions

    Stamford Type

    Winding Pitch

    2 / 3 pitch

    Excitation

    Brushless, self-excited, synchronous

    Insulation Class

    H


    Description:
    Frequency And Voltage
    50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
    Insulation and Protection
    Insulation: H, Protection: IP22
    Voltage Regulators
    The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
    Winding
    All generator stators are wound to 2/3 pitch.
    The quality management system of our factory
    A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.

    Competitive Advantage:
    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    7. CE,ISO9001
    8. Good after-sale service
    Quality Control Surveillance
    11.8kw Working Of AC Generator With Class H For Cummins Generator Set 3000RPM 0
    11.8kw Working Of AC Generator With Class H For Cummins Generator Set 3000RPM 1
