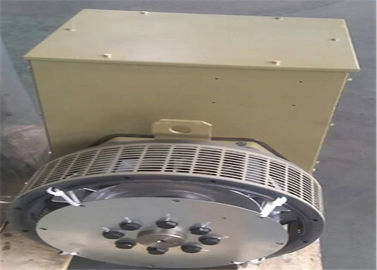

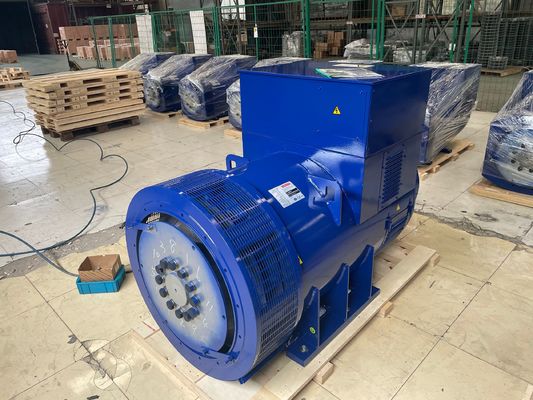

10kw 12.5kva 50 HZ Brushless Generator With 12 / 6 Wire ISO9001

10kw 12.5kva 50 HZ Brushless Generator With 12 / 6 Wire ISO9001

    • 10kw 12.5kva 50 HZ Brushless Generator With 12 / 6 Wire ISO9001
  • 10kw 12.5kva 50 HZ Brushless Generator With 12 / 6 Wire ISO9001

    جزئیات محصول:

    Place of Origin: Wuxi,China
    نام تجاری: Werna
    گواهی: CE,ISO9001,SASO
    Model Number: WR162D

    پرداخت:

    Minimum Order Quantity: 1 pcs
    قیمت: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    مخاطب
    توضیحات محصول جزئیات
    Warranty: 2 years Life time: 20 years
    Insulation class: H Protection: IP 22/ 23
    Packing: Plywood Color: Optional
    برجسته:

    self-excited ac generator

    ,

    brushless synchronous generator

    10kw / 12.5kva 50 HZ Brushless AC Synchronous Generator With 12 / 6 Wire ISO9001

    Quick Detail:

    Name

    ALTERNATOR

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator



    Power

              8.4kw

    Certificate

    CE,ISO9001,SASO


    Specifications:

    Model

    WR162D

    manufacturer

     Wuxi City ,Jiangsu Prov ,China making alternators

    Output Type

    AC Three Phase diesel generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110-240V

    Frequency

    50HZ

    Speed

    3000RPM

    Mounting dimensions

    Stamford Type

    Winding Pitch

    2 / 3 pitch

    Excitation

    Brushless, self-excited, synchronous

    Insulation Class

    H



    Technical data

    Werna Type 3Phase 50Hz3000rpm Shaft Length Copper total weight Core length
             380V~415V
    KVA KW mm kgs mm
    WR162D 12.5 10 373.16 12.22 66
    WR162E 15 12 373.16 13.02 88
    WR162F 17.5 14 425.16 13.44 102
    WR162G 25 20 425.16 15.2 140
    WR182H 30 24 490.16 15.88 160
    WR182J 35 28 490.16 17.19 190
    WR182K 37.5 30 530.16 18.48 225

    Description:
    Frequency And Voltage
    50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
    Insulation and Protection
    Insulation: H, Protection: IP23
    Voltage Regulators
    The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
    Winding
    All generator stators are wound to 2/3 pitch.
    The quality management system of our factory
    A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
    Competitive Advantage:
    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    7. CE,ISO9001
    8. Good after-sale service

    Quality Control Surveillance
