| Place of Origin: | Wuxi,China |
| نام تجاری: | WERNA |
| گواهی: | CE,ISO9001,SASO |
| Model Number: | WR182K |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| قیمت: | USD 681 FOB SHANGHAI |
| Packaging Details: | Plywood |
| Delivery Time: | ± 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 units/month |
| Wire: | 100% copper wire | Warranty: | 2 years |
|---|---|---|---|
| Life time: | 20 years | Color: | Optional |
| Protection: | IP22/23 | Insulation class: | H |
| برجسته: | self-excited ac generator,brushless synchronous generator,brushless synchronous generator |
||

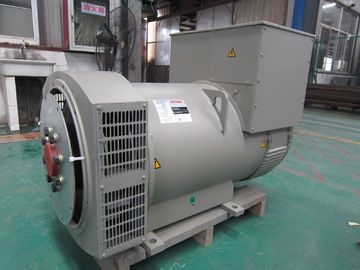

Single Phase AC Brushless Generator High speed SX460 AVR 37.5kva / 30kw
Quick Detail:
Name | Alternator | Brand Name | WERNA |
Color | According to the international standard color card | Feature | AC brushless synchronous excitation alternator |
Power | 30kw | Certificate | CE,ISO9001,SASO |
Specifications:
Model | WR182L |
manufacturer | Wuxi City ,Jiangsu Prov ,China making alternators |
Output Type | AC Single Phase diesel generator |
Terminal | 12 / 6 Wire |
Rated Voltage | 190-454V |
Frequency | 50HZ |
Speed | 3000RPM |
Mounting dimensions | Stamford Type |
Winding Pitch | 2 / 3 pitch |
Excitation | Brushless, self-excited, synchronous |
Insulation Class | H |
Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
Quality Control Surveillance
