Self Exciting 3 Phase AC Generator 60hz 800kw / 1000kva with sx460

Self Exciting 3 Phase AC Generator 60hz 800kw / 1000kva with sx460

  • Self Exciting 3 Phase AC Generator 60hz 800kw / 1000kva with sx460
Self Exciting 3 Phase AC Generator 60hz 800kw / 1000kva with sx460
جزئیات محصول:
Place of Origin: Wuxi,China
نام تجاری: WERNA
گواهی: CE,ISO9001,SASO
Model Number: WR634E
پرداخت:
Minimum Order Quantity: 1 pcs
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
مخاطب
توضیحات محصول جزئیات
برجسته:

3 phase portable generator,three phase alternator

,

three phase alternator

Self Exciting 3 Phase AC Generator 60hz 800kw / 1000kva with sx460



Quick detail:

Name:alternator                                  Brand name :WERNA

Color:According to the international standard color card

Feature:Ac brushless synchronous eccitation alternator

Certificate:CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

190V~454V

Frequency

50Hz

Speed

1500RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H



Technical data

Werna Type 3Phase 50Hz 1500rpm Shaft length Copper total weight Core length
380V~415V
KVA KW mm kgs mm
WR634B

750

600 1459.2 212.2 355
WR634C 800 640 1459.2 222.2 380
WR634D 910 728 1459.2 234.2 410
WR634E 1000 800 1459.2 251.2 465
WR634F 1130 904 1459.2 283.2 560
WR634G 1250 1000 1560.2 303.2 675







Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23
 IP23 is for optional but the rated power will decrease 5%.

 Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

 Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.

Advantages of Werna Alternator/generator?

1, Advanced AVR :SX460 &SX440
2, H class insulation ensure the generator running in dreadful conditions
3, The 2/3 pitch design avoids excessive neutral currents
4, You can reconnect 12 ends of the terminals to meet other voltage
5, Single bearing and double bearing ,single phase and three phases
6, Standard IP23

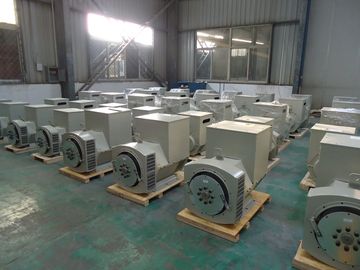

Self Exciting 3 Phase AC Generator 60hz 800kw / 1000kva with sx460 0

Self Exciting 3 Phase AC Generator 60hz 800kw / 1000kva with sx460 1
