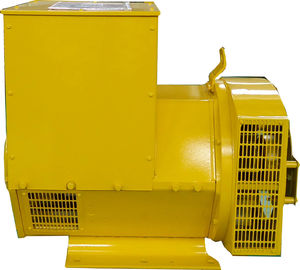

80kw / 80kva 50hz Self Exciting Diesel AC Generator Stamford Type 1 Phase

80kw / 80kva 50hz Self Exciting Diesel AC Generator Stamford Type 1 Phase

    • 80kw / 80kva 50hz Self Exciting Diesel AC Generator Stamford Type 1 Phase
  • 80kw / 80kva 50hz Self Exciting Diesel AC Generator Stamford Type 1 Phase

    جزئیات محصول:

    Place of Origin: Wuxi,China
    نام تجاری: Werna
    گواهی: CE,ISO9001,SASO
    Model Number: WR274D

    پرداخت:

    Minimum Order Quantity: 5pcs
    قیمت: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    مخاطب
    توضیحات محصول جزئیات
    برجسته:

    single phase diesel generator

    ,

    synchronous diesel generator

    80kw / 80kva 50hz Self Exciting Diesel AC Generator Stamford Type 1 Phase


    Quick Detail:

    Name

    ALTERATOR

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator


    Power

             80kw

    Certificate

    CE,ISO9001,SASO


    Specifications:

    Model

    WR274D

    manufacturer

     Wuxi City ,Jiangsu Prov ,China making alternators

    Output Type

    AC Single Phase diesel generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110-240V

    Frequency

    50HZ

    Speed

    1500RPM

    Mounting dimensions

    Stamford Type

    Winding Pitch

    2 / 3 pitch

    Excitation

    Brushless, self-excited, synchronous

    Insulation Class

    H



    Technical Datas

    Werna Type

    3Phase 50Hz 1500rpm

    Shaft length

    Copper total weight

    Core length



    380V~415V




    KVA

    KW

    mm

    kgs

    mm

    WR274C

    100

    80

    758

    41.24

    165

    WR274D

    120

    91

    758

    47.64

    205

    WR274DL

    125

    100

    758

    49.2

    215

    WR274E

    140

    112

    873

    52.21

    230

    WR27EL

    150

    120

    873

    53.1

    250

    WR274F

    160

    128

    873

    54.81

    285

    WR274G

    181

    145

    923

    62.11

    335

    WR274H

    200

    160

    963

    67.91

    375

    WR274J

    230

    184

    1006.6

    74.61

    450

    WR274K

    250

    200

    1006.6

    76.1

    450

    Description:
    We are Professional Manufacture for Brushless Alternator since the year of 2000, Which type are Copy of Stamford.There are 5kVA up to 1386kVA at 1500/1800rpm, 3000/3600rpm, with 50/60Hz, 110V-690V for you selected.Our company located in Wuxi city, Which is near Shanghai.We have a first-class technical personnel and a set of strict quality management system.We use the best materials and carry out the strict procedure to ensure our high quality. For example ,we have two vacuum leaching insulated paint ,which other companies can't do. Besides our Quality Engineer are old engineer who have rich experiences. And our price is reasonable for share of market is first in our company.

    1. The winding varnished wire

    The varnished wire our factory use is the H level of 200℃.And the manufacture is the famous public factory whose quality reputation is stable and reliable.

    1. Silicon Steel Sheet

    The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.And its advantage is its magnetic flux is large and its iron loss is small.

    1. Insulating paper

    The insulating paper we use are supplied by a factory in Suzhou which is invested by a foreign company.The company has strict standard of quality management.They use the material of Dupont and imported glue water.Through the survey and detection,the quality is absolutely the best.

    1. The main frame

    The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.

    1. Craft

    The craft of our company use the standard of Stamford.All the workers should be trained for a long time.And we carry out the management of 6s.

    1. Component

    All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.This is a process that other factories never used.Because it would take much more electric charge,and make the insulated paint consume and loss twice,so it will increase the cost.What's more,all the components should be handled through the process of dampproof,salt and fog proof, anti-corrosion.

    competitive Advantage:
    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    7. CE,ISO9001
    8. Good after-sale service

    80kw / 80kva 50hz Self Exciting Diesel AC Generator Stamford Type 1 Phase 0
