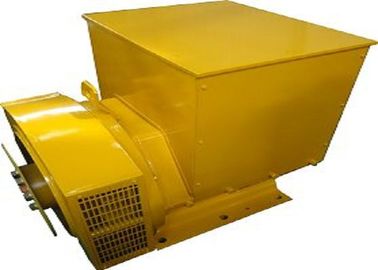

Stamford Type Three Phase AC Generator 225kw / 281kva , Two Year Warranty

Stamford Type Three Phase AC Generator 225kw / 281kva , Two Year Warranty

    • Stamford Type Three Phase AC Generator 225kw / 281kva , Two Year Warranty
  • Stamford Type Three Phase AC Generator 225kw / 281kva , Two Year Warranty

    جزئیات محصول:

    Place of Origin: Wuxi,China
    نام تجاری: Werna
    گواهی: CE,ISO9001,SASO
    Model Number: WR274J

    پرداخت:

    Minimum Order Quantity: 5pcs
    قیمت: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    مخاطب
    توضیحات محصول جزئیات
    برجسته:

    3 phase ac generator

    ,

    three phase alternator

    Stamford Type Three Phase AC Generator 225kw / 281kva , Two Year Warranty


    Quick detail:

    Name

    ALTERNATOR

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator

    Power

    225KW

    Certificate

    CE,ISO9001,SASO


    Specication:

    manufacture

    Wuxi City ,Jiangsu Prov ,China making alternators

    Output type

    AC Three Phase Brushless generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    208V~480V

    Frequency

    60Hz

    Speed

    1800RPM

    Mounting Dimension

    Stamford Type

    Winding  pitch

    2/3 pitch

    Excitation

    Brushless, self-excited, synchro

    Insulation Class

    H



    Parameter:



    Werna Type 3Phase 50Hz 1500rpm Shaft length Copper total weight Core length
    380V~415V
    KVA KW mm kgs mm
    WR274C 100 80 758 41.24 165
    WR274D 120 91 758 47.64 205
    WR274DL 125 100 758 49.2 215
    WR274E 140 112 873 52.21 230
    WR27EL 150 120 873 53.1 250
    WR274F 160 128 873 54.81 285
    WR274G 181 145 923 62.11 335
    WR274H 200 160 963 67.91 375
    WR274J 230 184 1006.6 74.61 450
    WR274K 250 200 1006.6 76.1 450











































    Description:
    Frequency And Voltage
    50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

    Insulation and Protection
    Insulation: H, Protection: IP23
     IP23 is for optional but the rated power will decrease 5%.

     Voltage Regulators(AVR)
    The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

     Winding
    All generator stators are wound to 2/3 pitch.
    with long experience in manufacturing alternator / ac generator.
    Alternator brushless for aksa generator Ranging 6.5 --1200KW
    for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.

    Why to choose Werna Alternator/generator?

    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    7. CE,ISO9001
    8. Good after-sale service
    Stamford Type Three Phase AC Generator 225kw / 281kva , Two Year Warranty 0
