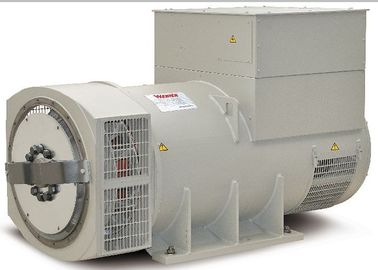

Conpound 600kw / 750kva Electric Alternators For MTU Generator Set 190V ~ 454V

Conpound 600kw / 750kva Electric Alternators For MTU Generator Set 190V ~ 454V

    • Conpound 600kw / 750kva Electric Alternators For MTU Generator Set 190V ~ 454V
  • Conpound 600kw / 750kva Electric Alternators For MTU Generator Set 190V ~ 454V

    جزئیات محصول:

    Place of Origin: Wuxi,China
    نام تجاری: Werna
    گواهی: CE,ISO9001,SASO
    Model Number: WR634B

    پرداخت:

    Minimum Order Quantity: 5pcs
    قیمت: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    مخاطب
    توضیحات محصول جزئیات
    برجسته:

    brushless ac generator

    ,

    brushless synchronous generator

    Conpound 600kw / 750kva Electric Alternators For MTU Generator Set 190V ~ 454V
    Quick detail:

    Name

    ALTERNATOR

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator

    Power

    600KW

    Certificate

    CE,ISO9001,SASO


    Specication:

    manufacture

    Wuxi City ,Jiangsu Prov ,China making alternators

    Output type

    AC Three Phase Brushless generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    190V~454V

    Frequency

    50Hz

    Speed

    1500RPM

    Mounting Dimension

    Stamford Type

    Winding  pitch

    2/3 pitch

    Excitation

    Brushless, self-excited, synchro

    Insulation Class

    H


    Description:
    1) Protection class IP23, insulation class H.
    2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable for indoors marine applications.
    3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc
    4) Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
    5) The power factor ranges from 0.8 to 1.
    6) Telephone influence factor is less than 50, according to NTMA.
    7) Transient voltage dip for rated step load at 0.8 power factor is less than 18%.
    8) Overload standard according to NEMA.
    9) All generator statore are wound to 2/3 pitch.

     Frequency And Voltage
    50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

    Insulation and Protection
    Insulation: H, Protection: IP23

    Voltage Regulators
    The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

    Winding
    All generator stators are wound to 2/3 pitch

    Why to choose Werna Alternator/generator?
    1, Advanced AVR :SX460 &SX440
    2, H class insulation ensure the generator running in dreadful conditions
    3, The 2/3 pitch design avoids excessive neutral currents
    4, You can reconnect 12 ends of the terminals to meet other voltage
    5, Single bearing and double bearing ,single phase and three phases
    6, Standard IP23
