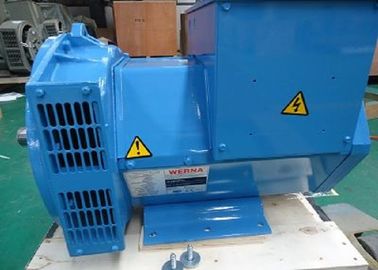

23kw / 28.8kva 1800rpm Three Phase AC Synchronous Generator Blue 110V ~ 690V

23kw / 28.8kva 1800rpm Three Phase AC Synchronous Generator Blue 110V ~ 690V

    • 23kw / 28.8kva 1800rpm Three Phase AC Synchronous Generator Blue 110V ~ 690V
  • 23kw / 28.8kva 1800rpm Three Phase AC Synchronous Generator Blue 110V ~ 690V

    جزئیات محصول:

    Place of Origin: Wuxi,China
    نام تجاری: Werna
    گواهی: CE,ISO9001,SASO
    Model Number: WR184E

    پرداخت:

    Minimum Order Quantity: 5pcs
    قیمت: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    مخاطب
    توضیحات محصول جزئیات
    برجسته:

    three phase ac generator

    ,

    3 phase alternator

    23kw / 28.8kva 1800rpm Three Phase AC Synchronous Generator Blue 110V ~ 690V

    Quick detail:

    Name

    ALTERNATOR

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator

    Power

    23KW

    Certificate

    CE,ISO9001,SASO



    Specication:

    manufacture

    Wuxi City ,Jiangsu Prov ,China making alternators

    Output type

    AC Three Phase Brushless generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110V~690V

    Frequency

    60Hz

    Speed

    1800RPM

    Mounting Dimension

    Stamford Type

    Winding  pitch

    2/3 pitch

    Excitation

    Brushless, self-excited, synchro

    Insulation Class

    H

    Description:

    ac synchronous three phase industrial alternators

    Electric performance

    Rated output power: 23KW

    Rated voltage:400/230v, 440/254v, 220/127v, etc.

    Phase/connecting method: 3 phase 12wire/Y type connection

    Rated frequency: 50/60hz

    Rated speed: 1500/1800rpm

    Excited type: Brushless, self excited

    Insulation: Class H

    Protection: IP23

    Voltage regulation: AVR automatic control

    Steady voltage regulation≤±1.0%

    Transient voltage regulations≤+20%, -15%

    Adjustable voltage range 95-105%Un

    Sine waveform distortion rate at no-load, ≤5%,(line voltage)



    The advantage of our material:

    1. Winding enamelled wire is 100% copper

    2. The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.

    3. The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.

    4. All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.

    5.  All the rotors and stators of our company use the rope of best nylon to tie.We promise the security of our products,the phenomenon of ribbon burst will never happen.

    6. All the rotors should be tested by dynamic balance of Germany to go on test of balance. All the products of  our factory should be tested by specialized Test Room.



    Why to choose Werna Alternator/generator?

    1. 100% copper winding wire

    2. In stock and fast delivery

    3. Two year warranty

    4. Best quality and competitive price

    5. Two-time vacuum impregnation dipping

    6. powerful quality control team

    7. Good after-sale service

    23kw / 28.8kva 1800rpm Three Phase AC Synchronous Generator Blue 110V ~ 690V 0
